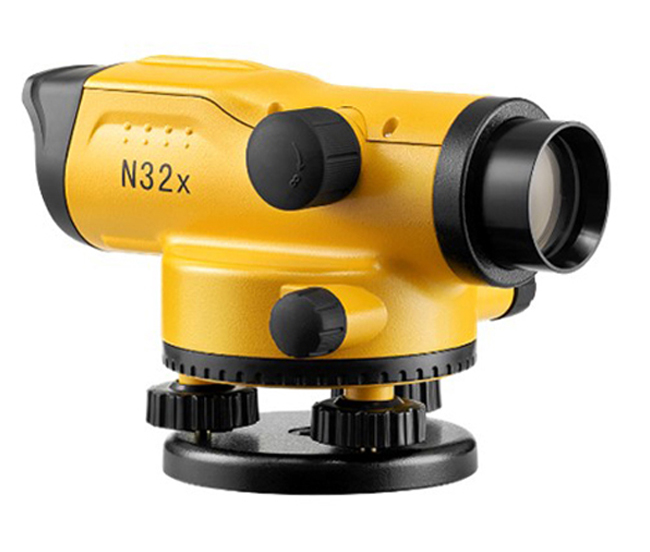

Nivel N32x

Precise optical leveling instrument for demanding users

Description

Optical level Nivel System N32x is an instrument for very precise measurements of elevation. Level is equiped with high quality optics which guarantee high-quality vision (clear image). Magnetic compensator allows performing measurements on unstable areas, where the tripod with level may be exposed to continuous vibration. The instrument is resistant to dust and water which allows it to work in harsh conditions – in rain or in very dusty environment. Level is intended for surveyors, road builders, construction workers, archaeologists – for all professionals who require high-precision measuring instrument and reliability.

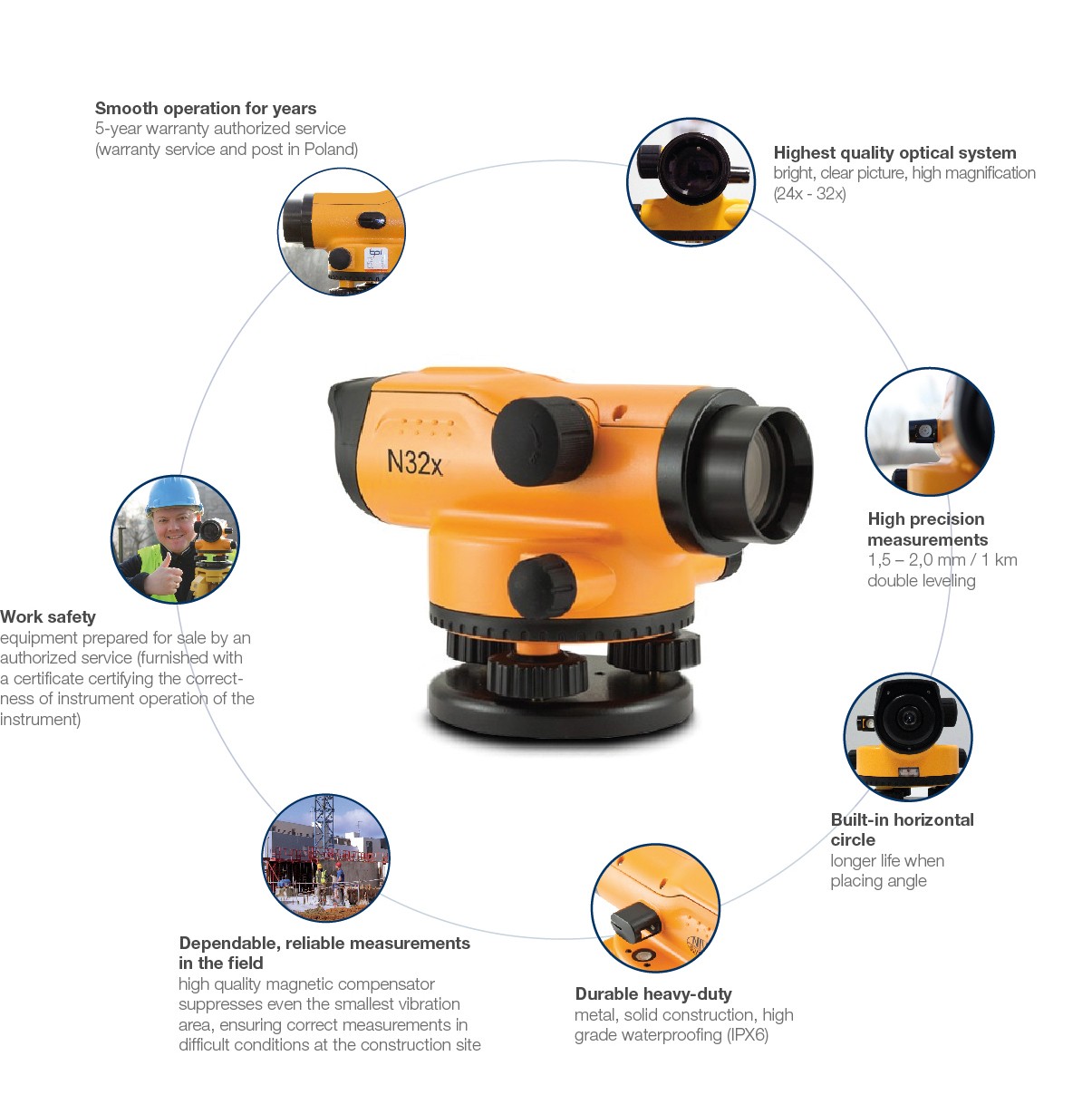

HIGH ACCURACY

Thanks to the high quality of the optical system ( lunette with a magnification of 32x) level ensures accuracy of 1,5 mm per 1 km in double run. Level can be used both for construction tasks and the exacting geodetic measurements . The image in the lunette is clear and legible.

HEAVY DUTY TO WORKING CONDITIONS , RESISTANT TO VIBRATION AND SHOCK

Built-in magnetic compensator automatically level the instrument. Thanks to it working in places with unstable and oscillating surface ( for example on a construction site near the working heavy machinery ) can be done. The equipment has a high standard water-and dust-proof (IPX6 ) .

THE MINIMUM DISTANCE FROM LEVELING STAFF

The equipment is designed to work with minimal target lenght about 0,3 m , which allows leveling the area close to the station without any need to change it.

COMFORT HANDLING

Infinite tangent screw allows you to precisely aim the level on the staff , and the spherical vial with a mirror allows you to easily and quickly level the instrument.

STABLE AND RELIABLE

Metal casing and high quality components of the level ensure trouble-free operation even in harsh field conditions. After-sales TPI service provides reliable operation of the instrument for many years.

PROVEN AND RELIABLE EQUIPMENT

Measurement equipment used on building site is subjected to the highest endurance tests. Working in dusty environments and in difficult terrain, surrounded by heavy machinery should ensure stable operation and correct measurements. Therefore, the TPI company, providing measuring equipment to the market more than 20 years sets the quality of their products in the first place. Confirmation of this assertion can be proved by the fact that the Nivel system Nx series levels are equipped with the highest quality components , before the sale each level is passing extensive tests certified by the instrument certificate.

Applications

classic leveling – determining the height difference in the field
earthworks – ground leveling and excavations
road construction
paving works – construction of parking places, driveways as well as terraces
water and sewerage works – controlling the depth of the trench and the pipelines laid dawn
gardens and agriculture

Specification

Accuracy	1,5mm/1km
Lunette lenght	215 mm
Image	simple
Maginification	32x
Lens diameter	42 mm
Field of view	1°20' (2,3 m)
Resolving	3,5″
The minimum focal length	0,3 m
Operating temperature range	-20°C to +50°C
Resistance class	IP66
Dimensions	130 x 215 x 140 mm
Weight	1,75 kg
